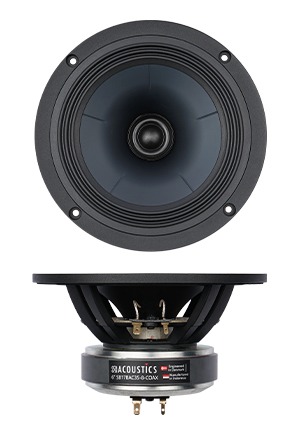

SB Acoustics SB17BAC35-8-COAX 6" Coaxial
Speaker Drivers · SKU: SB17BAC35-8-COAX · Brand SB Acoustics
฿9,200 (incl. VAT) · Pre-order
SB Acoustics SB17BAC35-8-COAX 6" Coaxial specifications
| Diameter Cone diameter — larger cones move more air and reach deeper bass | 6" |
|---|---|
| Impedance Voice-coil electrical resistance — must match your amplifier (e.g. 4Ω/8Ω) | Woofer 8 Ω / Tweeter 4 Ω |
| Power (RMS) Continuous power the driver handles safely (RMS) — not peak power | Woofer 45 W / Tweeter 30 W |
| Sensitivity (SPL) Sensitivity — loudness at 1W/1m; higher means louder with less amplifier power | Woofer 88 dB / Tweeter 93 dB |
| Fs Free-air resonance frequency — lower generally means deeper bass extension | Woofer 35.2 Hz / Tweeter 1350 Hz |
| Qts Total Q at resonance (electrical + mechanical) — guides the sealed vs ported choice | 0.33 |
| Qes Electrical Q at resonance — comes from the magnet motor strength | 0.36 |
| Qms Mechanical Q at resonance — from damping of the surround and spider | 4.1 |
| Vas Equivalent air volume of the suspension compliance — used to size the enclosure | 33.1 L |
| Sd Effective cone area that actually moves air | 108 cm² |
| Xmax Maximum linear excursion — more travel means louder bass without distortion | 3.1 mm |
| Re DC resistance of the voice coil | Woofer 5.2 Ω / Tweeter 3.6 Ω |
| Le Voice-coil inductance — affects high-frequency response | 0.13 mH |
| Mms Total moving mass, including the air load | 10.2 g |
| BL Motor force factor (magnetic flux × coil length) — higher means tighter cone control | 5.7 T·m |
| Weight Driver weight | 1630 g |
