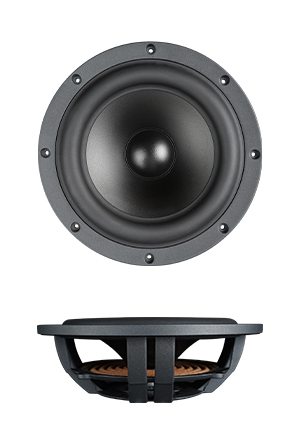

SB Acoustics MFC SB23MFCL-00 8" Passive Radiator
Speaker Drivers · SKU: SB23MFCL-00 · Brand SB Acoustics
฿5,400 (incl. VAT) · Pre-order
SB Acoustics MFC SB23MFCL-00 8" Passive Radiator specifications
| Diameter Cone diameter — larger cones move more air and reach deeper bass | 8" |
|---|---|
| Fs Free-air resonance frequency — lower generally means deeper bass extension | 19 Hz |
| Qms Mechanical Q at resonance — from damping of the surround and spider | 15.3 |
| Vas Equivalent air volume of the suspension compliance — used to size the enclosure | 31.2 L |
| Sd Effective cone area that actually moves air | 210 cm² |
| Mms Total moving mass, including the air load | 141 g |
| Weight Driver weight | 890 g |
SB Acoustics MFC SB23MFCL-00 8" Passive Radiator datasheet (PDF)
