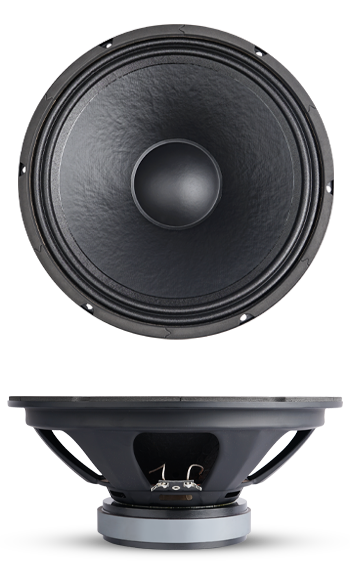

SB Audience Bianco 12OB150-01 12" Open Baffle Woofer
Speaker Drivers · SKU: BIANCO-12OB150-01 · Brand SB Audience
฿4,750 (incl. VAT) · In stock
SB Audience Bianco 12OB150-01 12" Open Baffle Woofer specifications
| Diameter Cone diameter — larger cones move more air and reach deeper bass | 12" |
|---|---|
| Impedance Voice-coil electrical resistance — must match your amplifier (e.g. 4Ω/8Ω) | 8 Ω |
| Power (RMS) Continuous power the driver handles safely (RMS) — not peak power | 150 W |
| Sensitivity (SPL) Sensitivity — loudness at 1W/1m; higher means louder with less amplifier power | 96 dB |
| Fs Free-air resonance frequency — lower generally means deeper bass extension | 44 Hz |
| Qts Total Q at resonance (electrical + mechanical) — guides the sealed vs ported choice | 0.63 |
| Qes Electrical Q at resonance — comes from the magnet motor strength | 0.69 |
| Qms Mechanical Q at resonance — from damping of the surround and spider | 6.39 |
| Vas Equivalent air volume of the suspension compliance — used to size the enclosure | 103.8 L |
| Sd Effective cone area that actually moves air | 539.1 cm² |
| Xmax Maximum linear excursion — more travel means louder bass without distortion | 6.79 mm |
| Re DC resistance of the voice coil | 7.2 Ω |
| Le Voice-coil inductance — affects high-frequency response | 1.18 mH |
| Mms Total moving mass, including the air load | 52.4 g |
| BL Motor force factor (magnetic flux × coil length) — higher means tighter cone control | 12.2 T·m |
| Weight Driver weight | 3600 g |
SB Audience Bianco 12OB150-01 12" Open Baffle Woofer datasheet (PDF)
