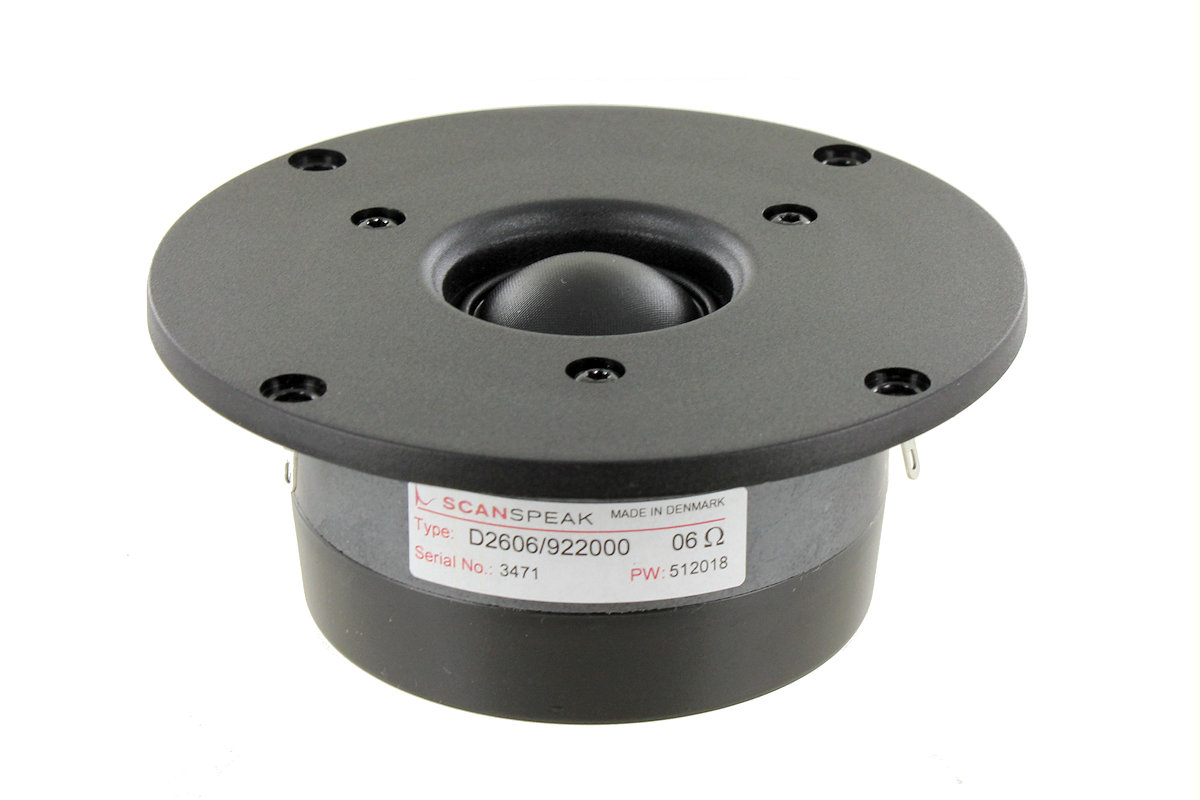

ScanSpeak Discovery D2606/922000 Tweeter
Speaker Drivers · SKU: D2606/922000 · Brand ScanSpeak
฿2,400 (incl. VAT) · In stock
ScanSpeak Discovery D2606/922000 Tweeter specifications
| Impedance Voice-coil electrical resistance — must match your amplifier (e.g. 4Ω/8Ω) | 6 Ω |
|---|---|
| Power (RMS) Continuous power the driver handles safely (RMS) — not peak power | 100 W |
| Sensitivity (SPL) Sensitivity — loudness at 1W/1m; higher means louder with less amplifier power | 91.5 dB |
| Fs Free-air resonance frequency — lower generally means deeper bass extension | 850 Hz |
| Qts Total Q at resonance (electrical + mechanical) — guides the sealed vs ported choice | 0.57 |
| Qes Electrical Q at resonance — comes from the magnet motor strength | 1.07 |
| Qms Mechanical Q at resonance — from damping of the surround and spider | 1.22 |
| Vas Equivalent air volume of the suspension compliance — used to size the enclosure | 0.01 L |
| Sd Effective cone area that actually moves air | 7.1 cm² |
| Xmax Maximum linear excursion — more travel means louder bass without distortion | 0.2 mm |
| Re DC resistance of the voice coil | 4.6 Ω |
| Le Voice-coil inductance — affects high-frequency response | 0.04 mH |
| Mms Total moving mass, including the air load | 0.33 g |
| BL Motor force factor (magnetic flux × coil length) — higher means tighter cone control | 2.8 T·m |
| Weight Driver weight | 500 g |
