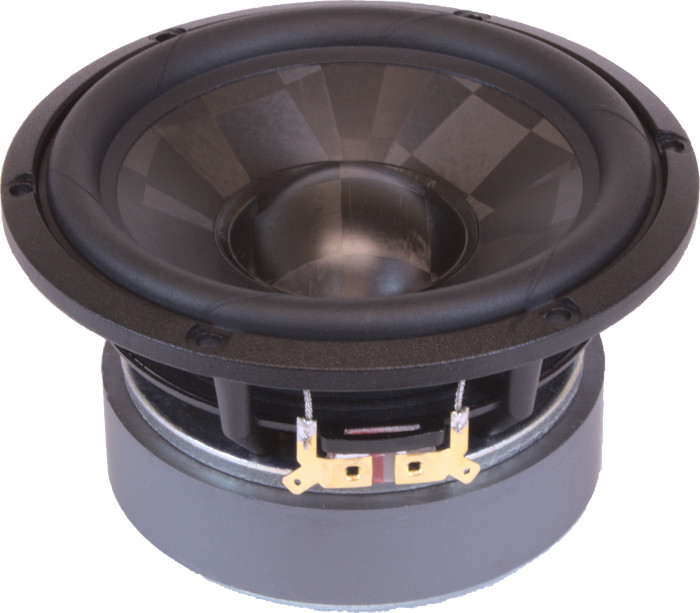

SEAS Excel W16NX005 6.5" Midwoofer
Speaker Drivers · SKU: E0115-08 · Brand SEAS
฿46,000 (incl. VAT) · In stock
SEAS Excel W16NX005 6.5" Midwoofer specifications
| Diameter Cone diameter — larger cones move more air and reach deeper bass | 6.5" |
|---|---|
| Impedance Voice-coil electrical resistance — must match your amplifier (e.g. 4Ω/8Ω) | 8 Ω |
| Power (RMS) Continuous power the driver handles safely (RMS) — not peak power | 180 W |
| Sensitivity (SPL) Sensitivity — loudness at 1W/1m; higher means louder with less amplifier power | 87.3 dB |
| Fs Free-air resonance frequency — lower generally means deeper bass extension | 40 Hz |
| Qts Total Q at resonance (electrical + mechanical) — guides the sealed vs ported choice | 0.32 |
| Qes Electrical Q at resonance — comes from the magnet motor strength | 0.34 |
| Qms Mechanical Q at resonance — from damping of the surround and spider | 4.37 |
| Vas Equivalent air volume of the suspension compliance — used to size the enclosure | 18 L |
| Sd Effective cone area that actually moves air | 104 cm² |
| Xmax Maximum linear excursion — more travel means louder bass without distortion | 7 mm |
| Re DC resistance of the voice coil | 6.4 Ω |
| Le Voice-coil inductance — affects high-frequency response | 0.45 mH |
| Mms Total moving mass, including the air load | 13.4 g |
| BL Motor force factor (magnetic flux × coil length) — higher means tighter cone control | 7.9 T·m |
| Weight Driver weight | 2100 g |
