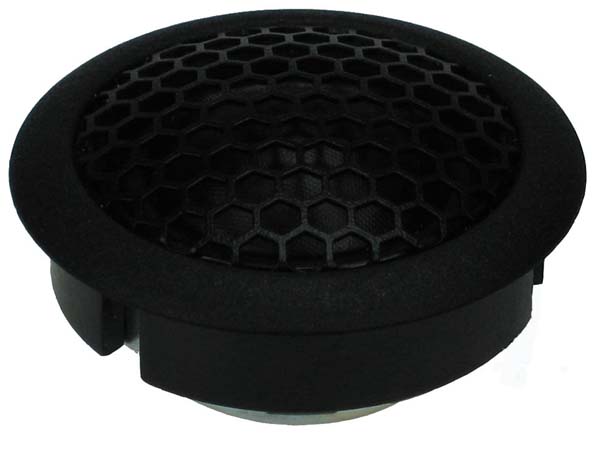

SEAS Prestige 27TFFNC/G Tweeter
Speaker Drivers · SKU: H1396-04 · Brand SEAS
฿2,150 (incl. VAT) · In stock
SEAS Prestige 27TFFNC/G Tweeter specifications
| Impedance Voice-coil electrical resistance — must match your amplifier (e.g. 4Ω/8Ω) | 4 Ω |
|---|---|
| Power (RMS) Continuous power the driver handles safely (RMS) — not peak power | 80 W |
| Sensitivity (SPL) Sensitivity — loudness at 1W/1m; higher means louder with less amplifier power | 91 dB |
| Fs Free-air resonance frequency — lower generally means deeper bass extension | 1170 Hz |
| Sd Effective cone area that actually moves air | 7.5 cm² |
| Xmax Maximum linear excursion — more travel means louder bass without distortion | 0.45 mm |
| Re DC resistance of the voice coil | 2.7 Ω |
| Le Voice-coil inductance — affects high-frequency response | 0.03 mH |
| Mms Total moving mass, including the air load | 0.26 g |
| BL Motor force factor (magnetic flux × coil length) — higher means tighter cone control | 1.9 T·m |
| Weight Driver weight | 100 g |
