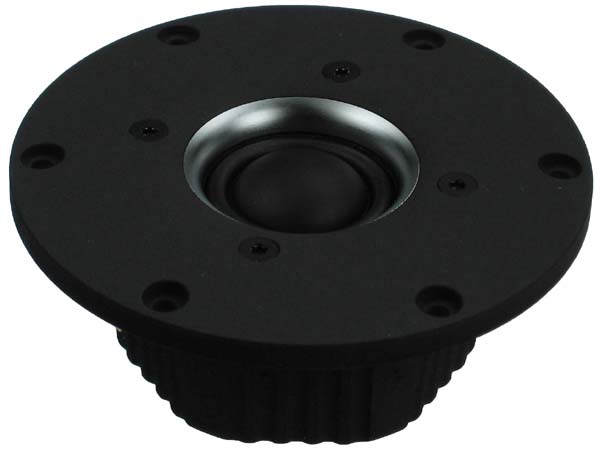

SEAS Excel T29CF002 Crescendo Tweeter
Speaker Drivers · SKU: E0040-06S · Brand SEAS
฿21,250 (incl. VAT) · Pre-order
SEAS Excel T29CF002 Crescendo Tweeter specifications
| Impedance Voice-coil electrical resistance — must match your amplifier (e.g. 4Ω/8Ω) | 6 Ω |
|---|---|
| Power (RMS) Continuous power the driver handles safely (RMS) — not peak power | 90 W |
| Sensitivity (SPL) Sensitivity — loudness at 1W/1m; higher means louder with less amplifier power | 92.5 dB |
| Fs Free-air resonance frequency — lower generally means deeper bass extension | 500 Hz |
| Sd Effective cone area that actually moves air | 8 cm² |
| Xmax Maximum linear excursion — more travel means louder bass without distortion | 0.5 mm |
| Re DC resistance of the voice coil | 4.7 Ω |
| Le Voice-coil inductance — affects high-frequency response | 0.05 mH |
| Mms Total moving mass, including the air load | 0.35 g |
| BL Motor force factor (magnetic flux × coil length) — higher means tighter cone control | 3.5 T·m |
| Weight Driver weight | 660 g |
