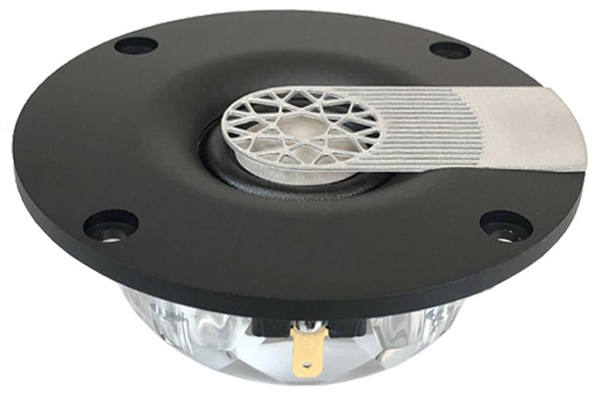

SEAS Excel T29D002 DARK DIAMOND Tweeter
Speaker Drivers · SKU: E0101-04 · Brand SEAS
฿355,000 (incl. VAT) · Pre-order
SEAS Excel T29D002 DARK DIAMOND Tweeter specifications
| Impedance Voice-coil electrical resistance — must match your amplifier (e.g. 4Ω/8Ω) | 4 Ω |
|---|---|
| Power (RMS) Continuous power the driver handles safely (RMS) — not peak power | 240 W |
| Sensitivity (SPL) Sensitivity — loudness at 1W/1m; higher means louder with less amplifier power | 90 dB |
| Fs Free-air resonance frequency — lower generally means deeper bass extension | 510 Hz |
| Sd Effective cone area that actually moves air | 7.3 cm² |
| Xmax Maximum linear excursion — more travel means louder bass without distortion | 0.7 mm |
| Re DC resistance of the voice coil | 3.6 Ω |
| Le Voice-coil inductance — affects high-frequency response | 0.01 mH |
| Mms Total moving mass, including the air load | 0.39 g |
| BL Motor force factor (magnetic flux × coil length) — higher means tighter cone control | 2.5 T·m |
| Weight Driver weight | 300 g |
