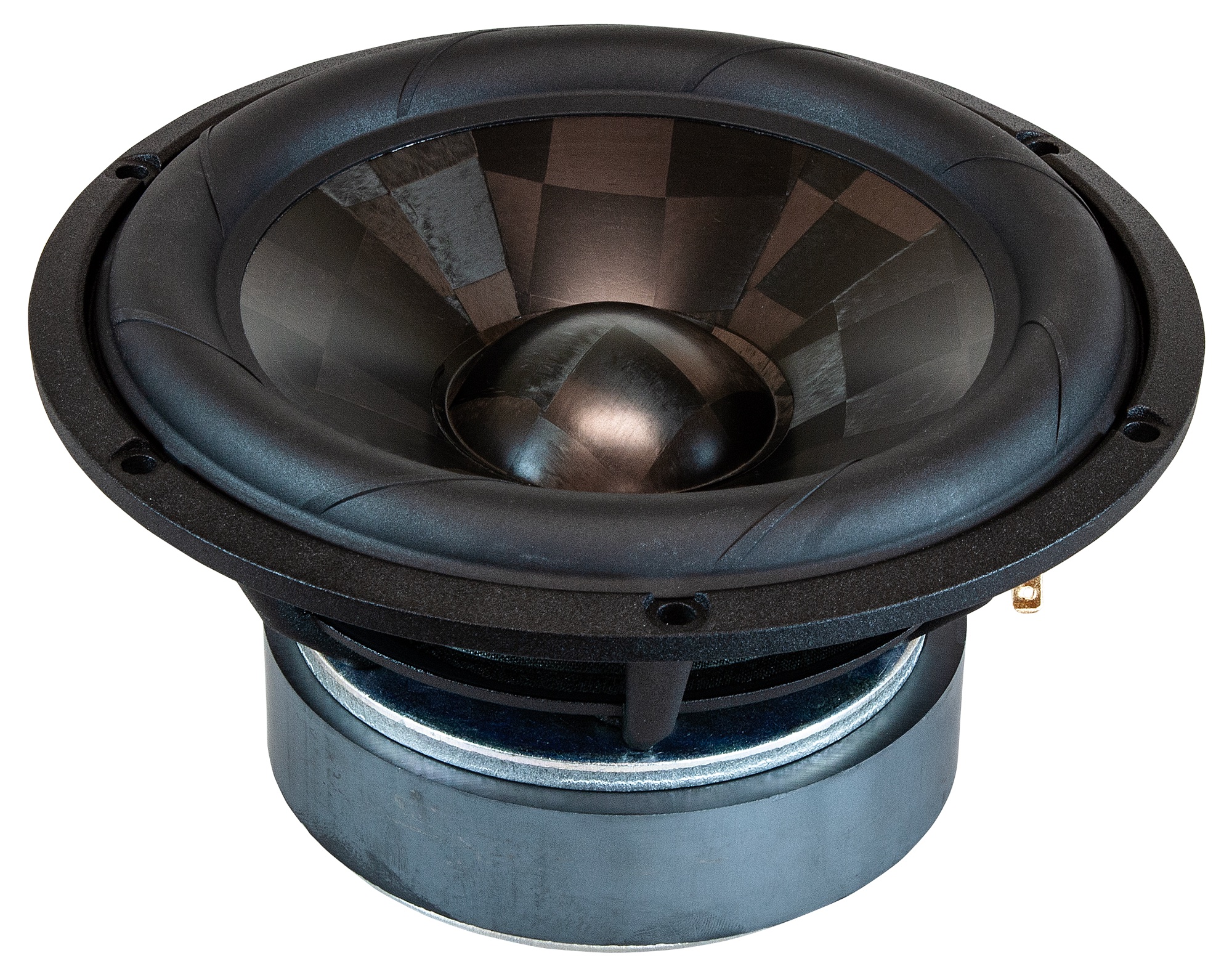

SEAS Excel W19NX004 7.5" Woofer
Speaker Drivers · SKU: E0117-08 · Brand SEAS
฿64,300 (incl. VAT) · Pre-order
SEAS Excel W19NX004 7.5" Woofer specifications
| Diameter Cone diameter — larger cones move more air and reach deeper bass | 7.5" |
|---|---|
| Impedance Voice-coil electrical resistance — must match your amplifier (e.g. 4Ω/8Ω) | 8 Ω |
| Power (RMS) Continuous power the driver handles safely (RMS) — not peak power | 200 W |
| Sensitivity (SPL) Sensitivity — loudness at 1W/1m; higher means louder with less amplifier power | 86 dB |
| Fs Free-air resonance frequency — lower generally means deeper bass extension | 33 Hz |
| Qts Total Q at resonance (electrical + mechanical) — guides the sealed vs ported choice | 0.39 |
| Qes Electrical Q at resonance — comes from the magnet motor strength | 0.42 |
| Qms Mechanical Q at resonance — from damping of the surround and spider | 4.81 |
| Vas Equivalent air volume of the suspension compliance — used to size the enclosure | 33 L |
| Sd Effective cone area that actually moves air | 146 cm² |
| Xmax Maximum linear excursion — more travel means louder bass without distortion | 7 mm |
| Re DC resistance of the voice coil | 6 Ω |
| Le Voice-coil inductance — affects high-frequency response | 0.38 mH |
| Mms Total moving mass, including the air load | 21.1 g |
| BL Motor force factor (magnetic flux × coil length) — higher means tighter cone control | 7.9 T·m |
| Weight Driver weight | 2000 g |
